Product Features :
CCT Adjustable:4000K/5000K/5700K

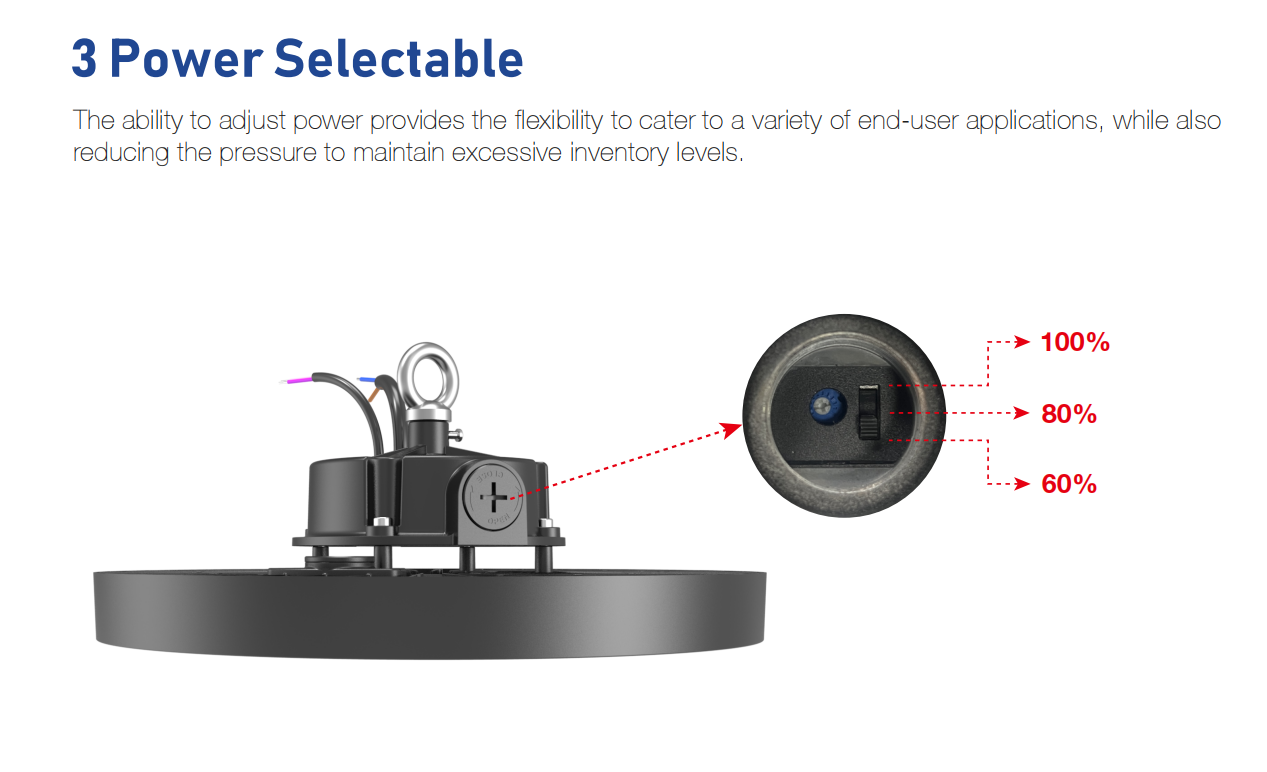

Wattage: 200W(dimming to 150W/100W)
Lighting efficiency: 150LM/W(R80)/170LM/W (R80)/190LM/W(R70)

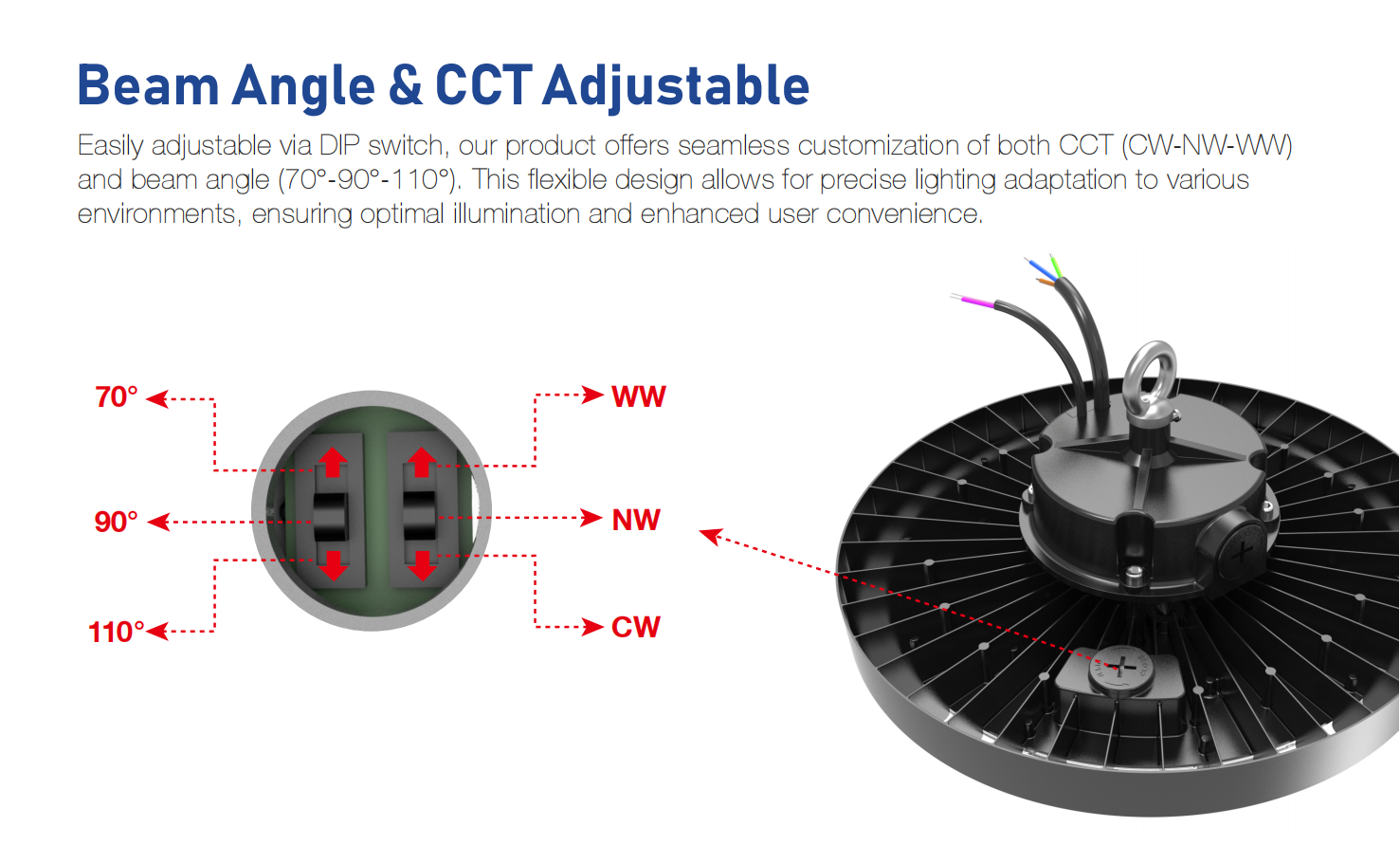

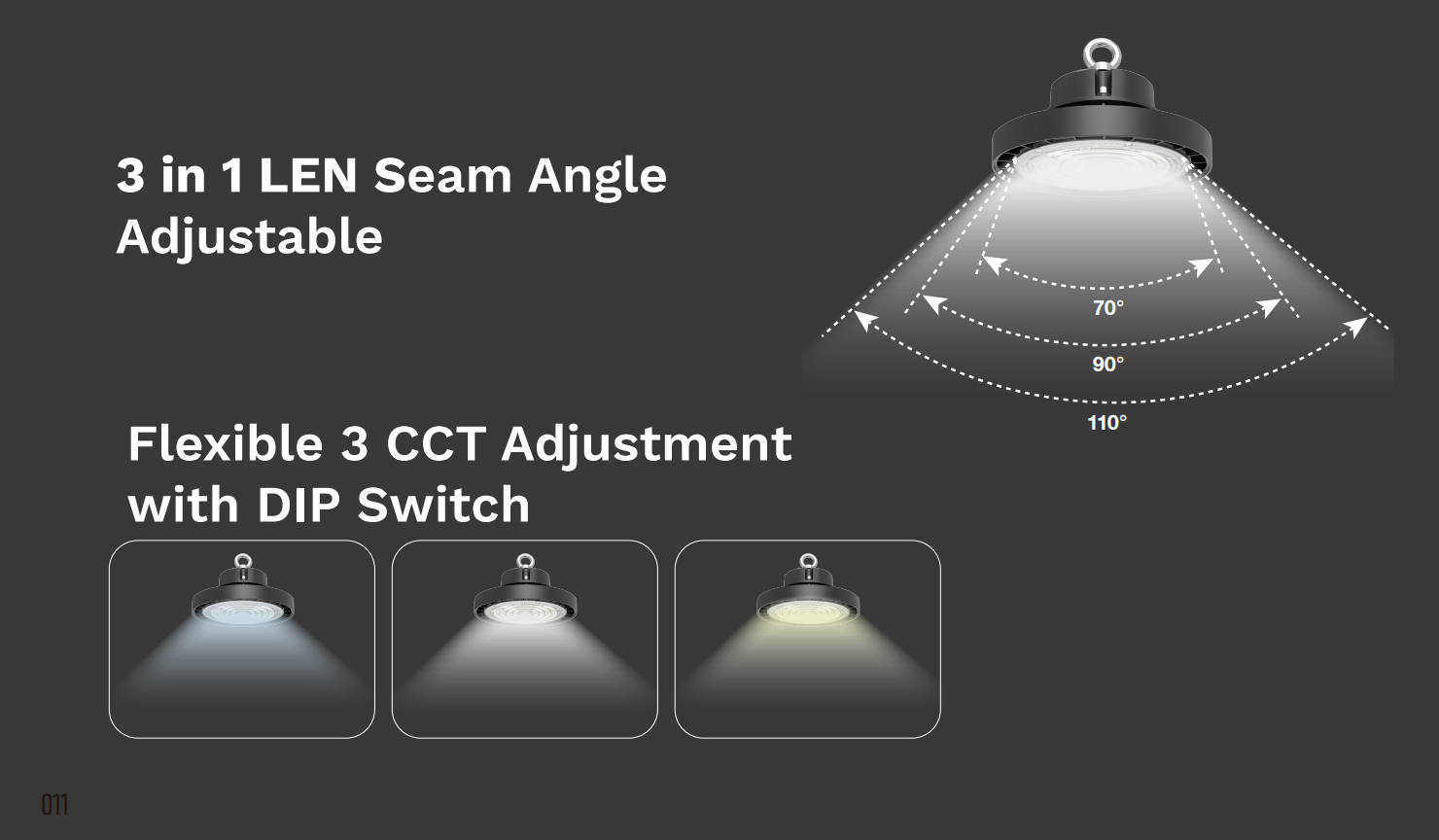

Beam angle: 90°(Channel version: one Angle can cover more than 90% of the market)
Protection grade: IP65 IK08
Operating environment: -40~50℃,life span 50000H
Power protection: power supply short circuit protected (SCP)/overvoltage protection(OVP)/over temperature protection(OTP).
Dimming control: 0-10V/PWM, auxiliary power supply 200MA 12V.

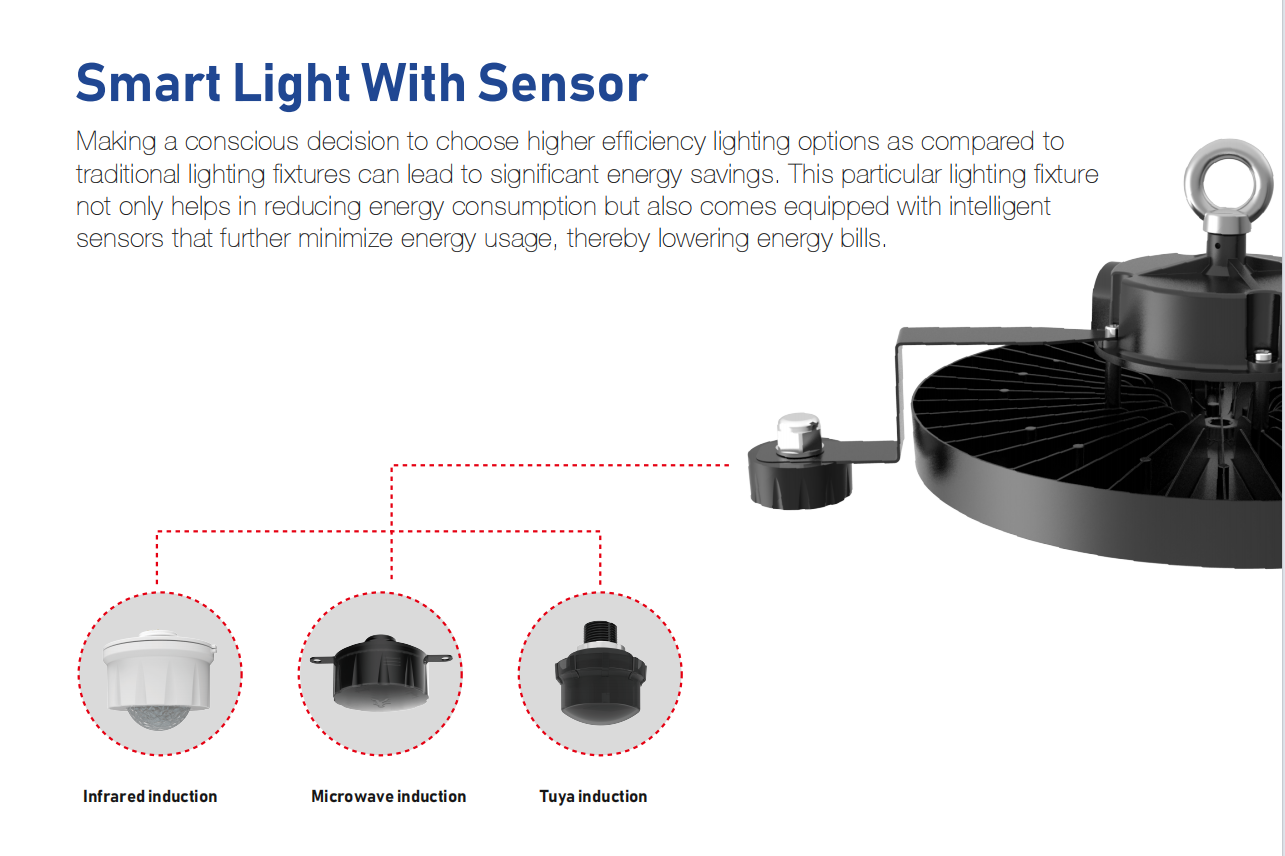

Controller selecting: single lamp microwave sensors/group microwave constant illuminance controllers are available in two standard configurations.
5 Year Warranty on Complete Fixture. (LEDs, Driver, & Housing)
Body: Aluminium alloy, Stainless steel screws

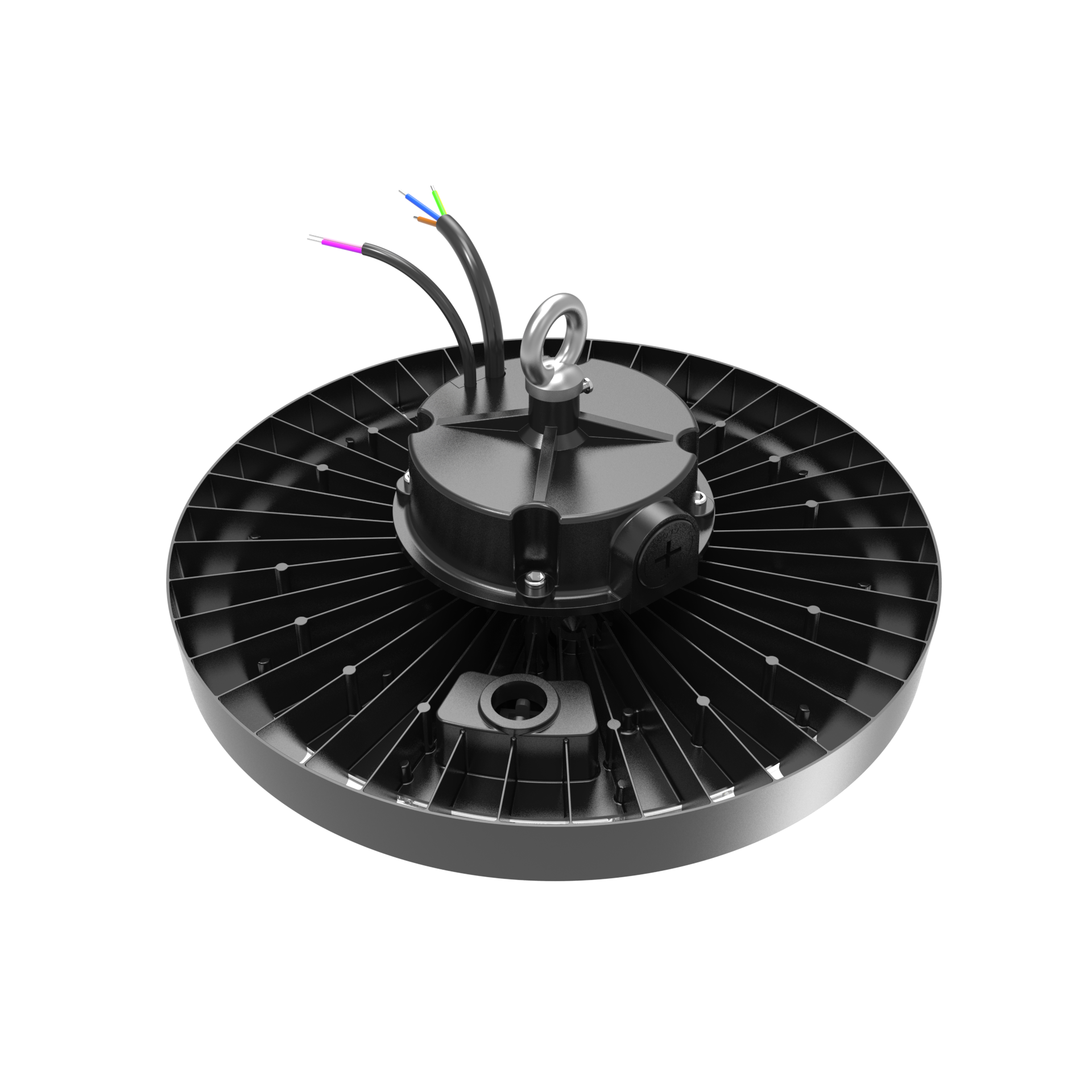

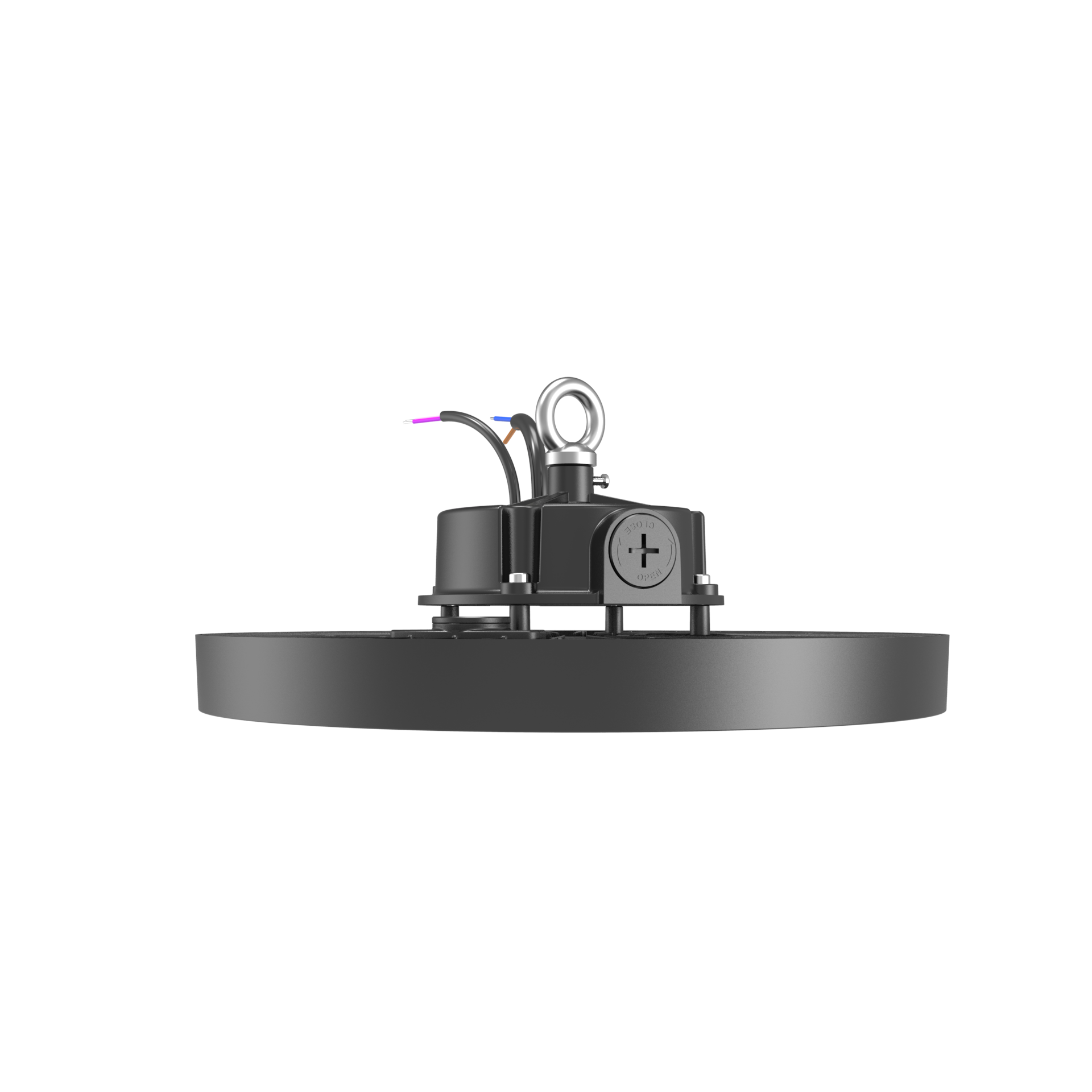

The INNO-TECH Smart UFO LED Highbay Light is an industry first bringing together advanced automatic Daylight detection with motion control and integrated wattage selection from 100W to 200W .
INNO-TECH Smart UFO LED Highbay Light is a light-weight integrated design of industrial and LED high bays specially designed for brand distributors, the overall lighting efficiency can be up to 190LM/W. Keeping the product function, but reduce multiple power to one SKU, reducing the customer's inventory by taking into account multiple power adjustment by the customer, also considering 0-10V/PWM dimming.Intelligent networking and microwave radar sensing function, while adding emergency power interface.
With all these technologies packed into convenient fitting, INNO-TECH Smart UFO LED Highbay Light can be used virtually across any project or application.
| Product Code | IT-SHB150W | IT-SHB150W | IT-SHB200W |
| Power | 100W | 150W | 200W |
| Input Voltage | 100-277VAC (50/60HZ) | ||
| Input Current | 0.45A/220VAC | 0.68A/220VAC | 0.91A/220VAC |
| Power Factor | 0.95 | ||
| Dimming Option | 3 in dimming (PWM, 0-10V, resistor), Power dial or internal microwave controller | ||
| CCT | 4000K/5000K/5700K | ||
| Lighting Efficiency | 150LM/W(R80)/170LM/W (R80)/190LM/W(R70) | ||
| Light Type | SMD 3030 or SMD2835 | ||
| Working temperature and humidity | 40～50℃，20～95%RHnon-condensing | ||
| Storage temperature and humidity | 40～85℃，10～95%RH non-condensing | ||
| Life Span | 50000Hours | ||
| Surge lighting stroke | 6KV / 10KV | ||
| IP/IK Class | IP65 / IK08 | ||
| Certificate | Accord with ETL, CB, CE, PSE, SAA, ROHS2.0 | ||
| Product Size (mm) | ∅300*97mm | ∅300*97mm | ∅300*97mm |
| Packing Size (mm) | 360*145*340mm | 360*145*340mm | 360*145*340mm |
| Quantity/carton | 1PCS | 1PCS | 1PCS |
| Gross Weight ( kg ) ± 0.3 | 4.2 | 4.2 | 4.2 |
| Installation | Suspending/wall mounted(reference the instruction) | ||
