Product Description

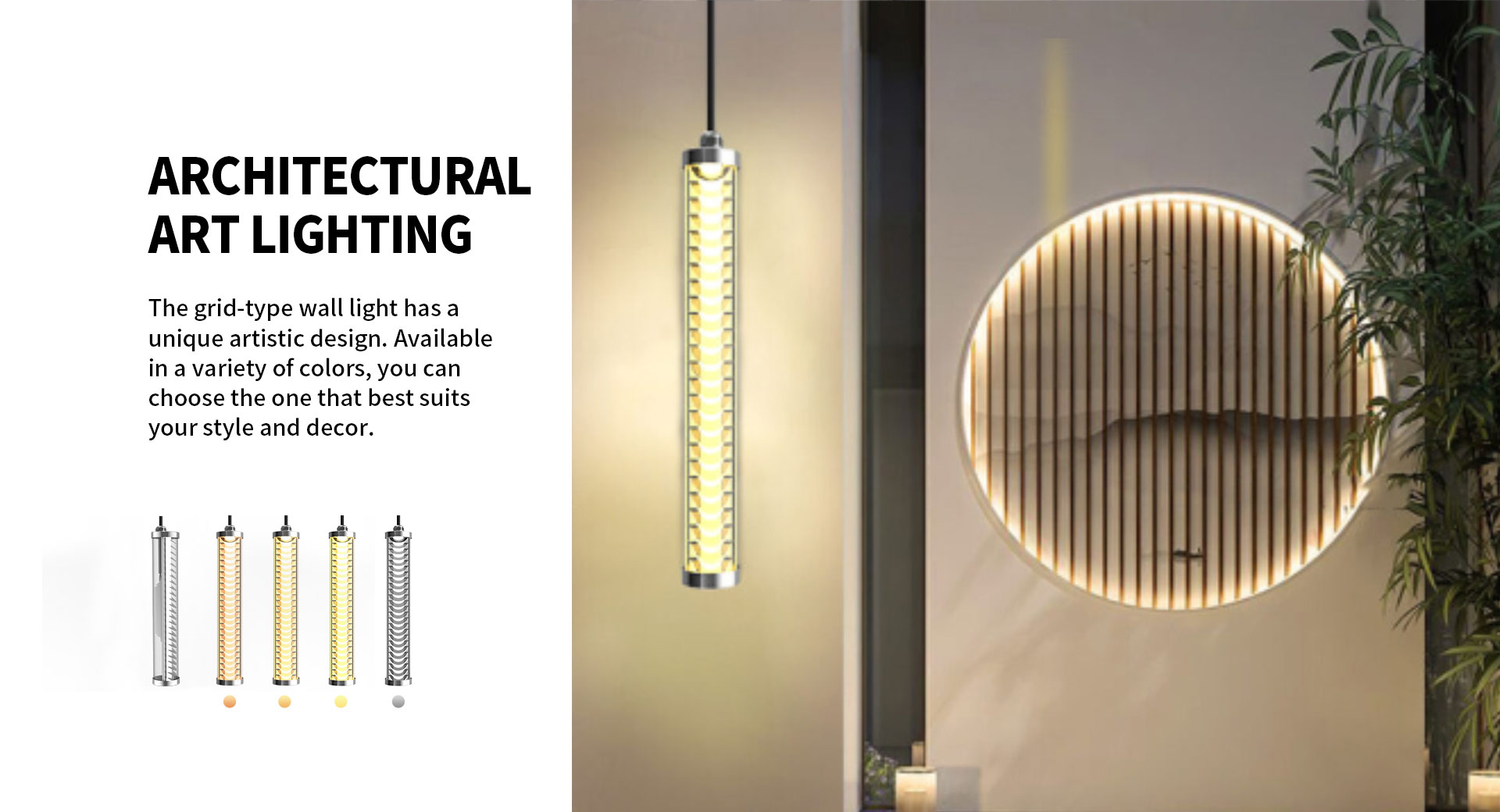

The INNO-TECH IP69K Grid Type LED Wall Light represents the pinnacle of innovation in the lighting industry. With its sleek and modern design, it seamlessly blends into any architectural setting, enhancing both aesthetics and functionality. Whether you're looking to illuminate outdoor spaces, industrial facilities, commercial buildings, or residential areas, this exceptional lighting fixture is tailored to meet your specific needs.

One of the standout features of the INNO-TECH IP69K Grid Type LED Wall Light is its superior protection against the harshest environmental conditions. Built to withstand extreme temperatures, high-pressure water jets, and even dusty or corrosive environments, this IP69K-rated fixture is perfect for outdoor and industrial applications. It ensures reliable performance and longevity, even in the most challenging settings.

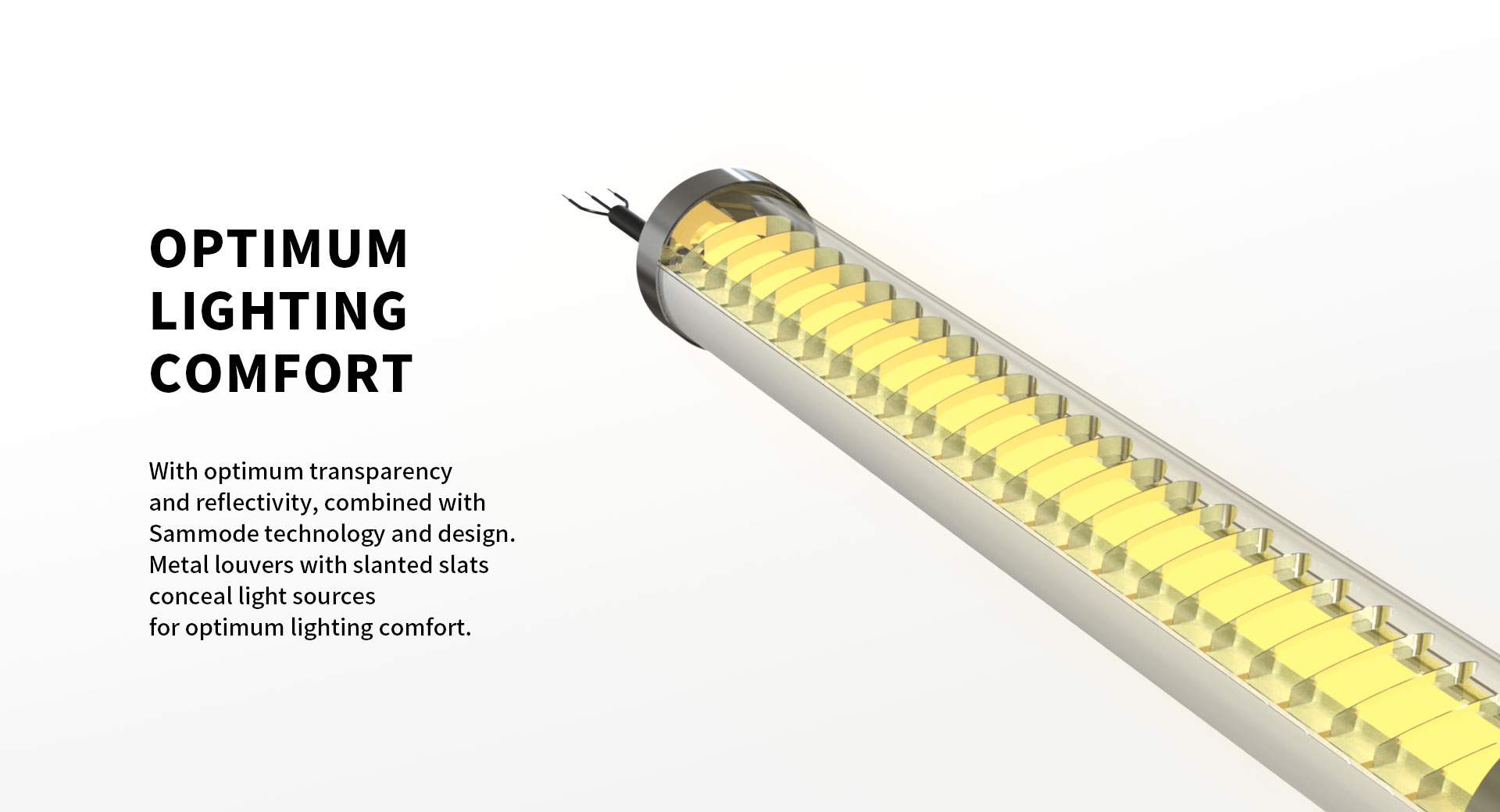

The grid-type design of the INNO-TECH IP69K Wall Light offers excellent light distribution, providing uniform illumination across a wide area. Whether it's for security purposes, accent lighting, or general visibility, this versatile fixture delivers exceptional light output, creating a well-lit and safe environment.

In addition to its exceptional performance, the INNO-TECH IP69K Grid Type LED Wall Light is also highly energy-efficient. Utilizing advanced LED technology, it offers significant energy savings compared to traditional lighting solutions, contributing to both cost reduction and environmental sustainability.

Installation and maintenance of the INNO-TECH IP69K Grid Type LED Wall Light are hassle-free. With its user-friendly design, it can be easily mounted on various surfaces, making it suitable for retrofitting existing installations or integrating into new projects. Its robust construction ensures minimal maintenance requirements, reducing downtime and overall operating cost

Model NoIT-L9-2F-20W-GIT-L9-4F-40W-GIT-L9-5F-50W-GIT-L9-6F-60W-G
Input Power20W40W50W60W
Dimension552 *Φ75mm1152 *Φ75mm1452 *Φ75mm1452 *Φ75mm
Dimming1-10V or Dali dimming
IP GradeIP69K
Input VoltageAC220-240V 50/60Hz
Lumens efficiency60lm/w
Beam Angle80*120 ˚
Working Temp-20°-45°
Leaking voltage< 10V
Inrush current< 14A
Warranty5 years

    ●IP69K /lP67
    ●PMMA IK08 / PC lk10
    ●Against water pressure of 100bar(1450psi) and temperature of 80°C
    ●Wide beam angle 80*120 degree
    ●High CRI >80
    ●UGR<19 is available
    ●Environmentally friendly, no mercury, No UV, No IR
    ●Energy Efficiency Grade: A+
    ●Quick Start instant 100% luminous flux
    ●5 Year Warranty on complete fixture. (LED's, Driver,& Housing)
    ●Certificate: CE,RoHs,D-mark Certified
    ●Surface Mount or Suspended
    ●Standard material for end caps, breather, surface mounting bracket is 304 stainless steel,316 material is available for option.
