Product Description

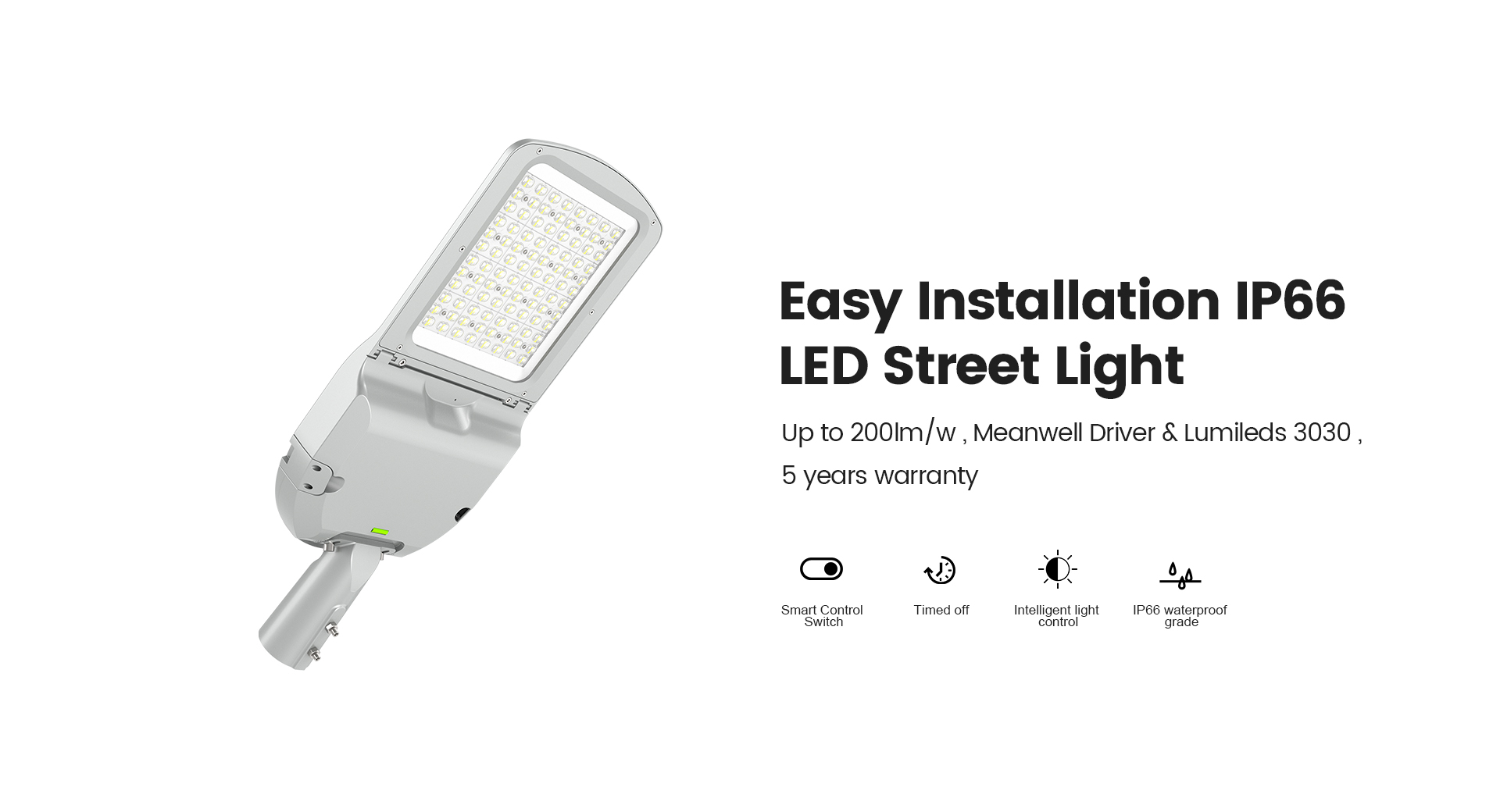

Shenzhen INNO-TECH Lighting Co., Ltd. proudly presents its innovative tool-free installation LED street light, designed to revolutionize outdoor lighting solutions. This state-of-the-art street light features an impressive efficacy of up to 200 lumens per watt, ensuring maximum brightness while minimizing energy consumption.

The design includes three specialized lens options—T2S, T3M, and T4M—allowing for professional-grade lighting tailored to various urban and rural environments. Each lens is engineered to optimize light distribution, enhancing visibility and safety on roadways and pathways.

With a focus on user convenience, the tool-free installation feature significantly reduces setup time and labor costs, making this LED street light an ideal choice for municipalities and private developers alike. Embrace the future of street lighting with Shenzhen INNO-TECH’s advanced LED technology, combining efficiency, reliability, and ease of use.


Model No

IT-S7B-50WIT-S7B-75WIT-S7B-100WIT-S7B-150WIT-S7B-200WIT-S7B-240W
Input Power50W75W100W150W200W240W
Dimension493*174*108mm562*200*108mm607*240*108mm680*260*108mm766*300*108mm766*300*108mm
CCT4000K/5000K/5700K4000K/5000K/5700K4000K/5000K/5700K4000K/5000K/5700K4000K/5000K/5700K4000K/5000K/5700K
CRIRa70 /Ra80Ra70 /Ra80Ra70 /Ra80Ra70 /Ra80Ra70 /Ra80Ra70 /Ra80
1-10V1-10V
PF>0.95>0.95>0.95>0.95>0.95>0.95
IP GradeIP66IP66IP66IP66IP66IP66
Input Voltage100‐240VAC100‐240VAC100‐240VAC100‐240VAC100‐240VAC100‐240VAC
Lumens efficiency180-200lm/w SMD 5050180-200lm/w SMD 5050180-200lm/w SMD 5050180-200lm/w SMD 5050180-200lm/w SMD 5050180-200lm/w SMD 5050
160-180lm/w SMD 3030 160-180lm/w SMD 3030 160-180lm/w SMD 3030 160-180lm/w SMD 3030 160-180lm/w SMD 3030 160-180lm/w SMD 3030
Beam AngleT2S/T2M/T3MT2S/T2M/T3MT2S/T2M/T3MT2S/T2M/T3MT2S/T2M/T3MT2S/T2M/T3M
Working Temp& Humidity-40°-50° & 20~95%RH No condensation
Surge10KV10KV10KV10KV10KV10KV
Installation ModeBracket Mount
Warranty5 years5 years5 years5 years5 years5 years
LifespanL70B50>50,000 hoursL70B50>50,000 hoursL70B50>50,000 hoursL70B50>50,000 hoursL70B50>50,000 hoursL70B50>50,000 hours


easy installation led street light 3.jpg

    IP66, IK08 Protection
    Meanwell driver and Lumileds 3030
    Patent private mold, integrated die-casting AL
    Up to 200lm/w ,more energy saving
    Professional glare-free lens T2S / T3M / T4M

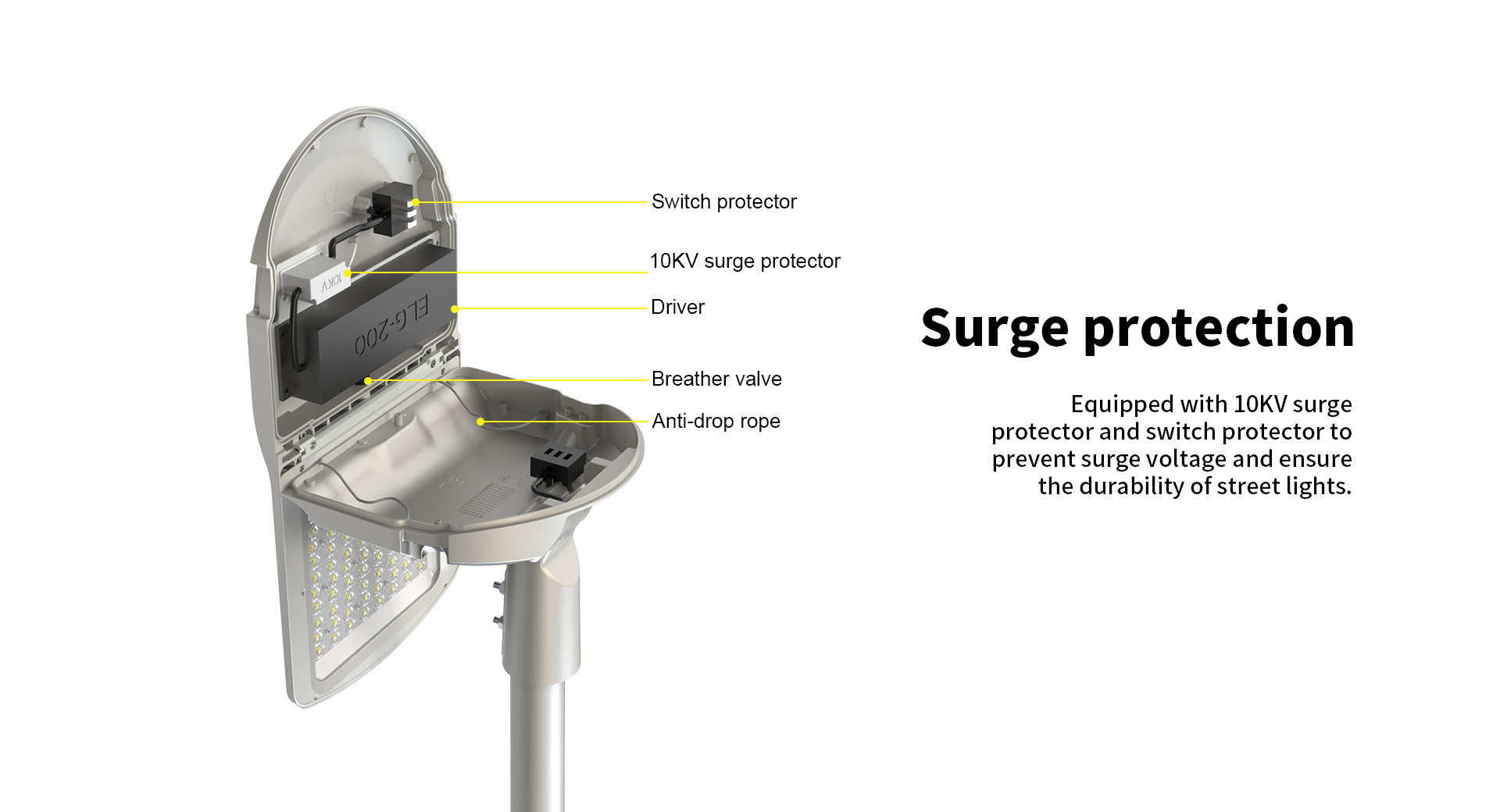

    With 10KV surge protection
    0-10V dimming/ time control / light sensor / IOT control available
    Flat honeycomb design, good heat dissipation

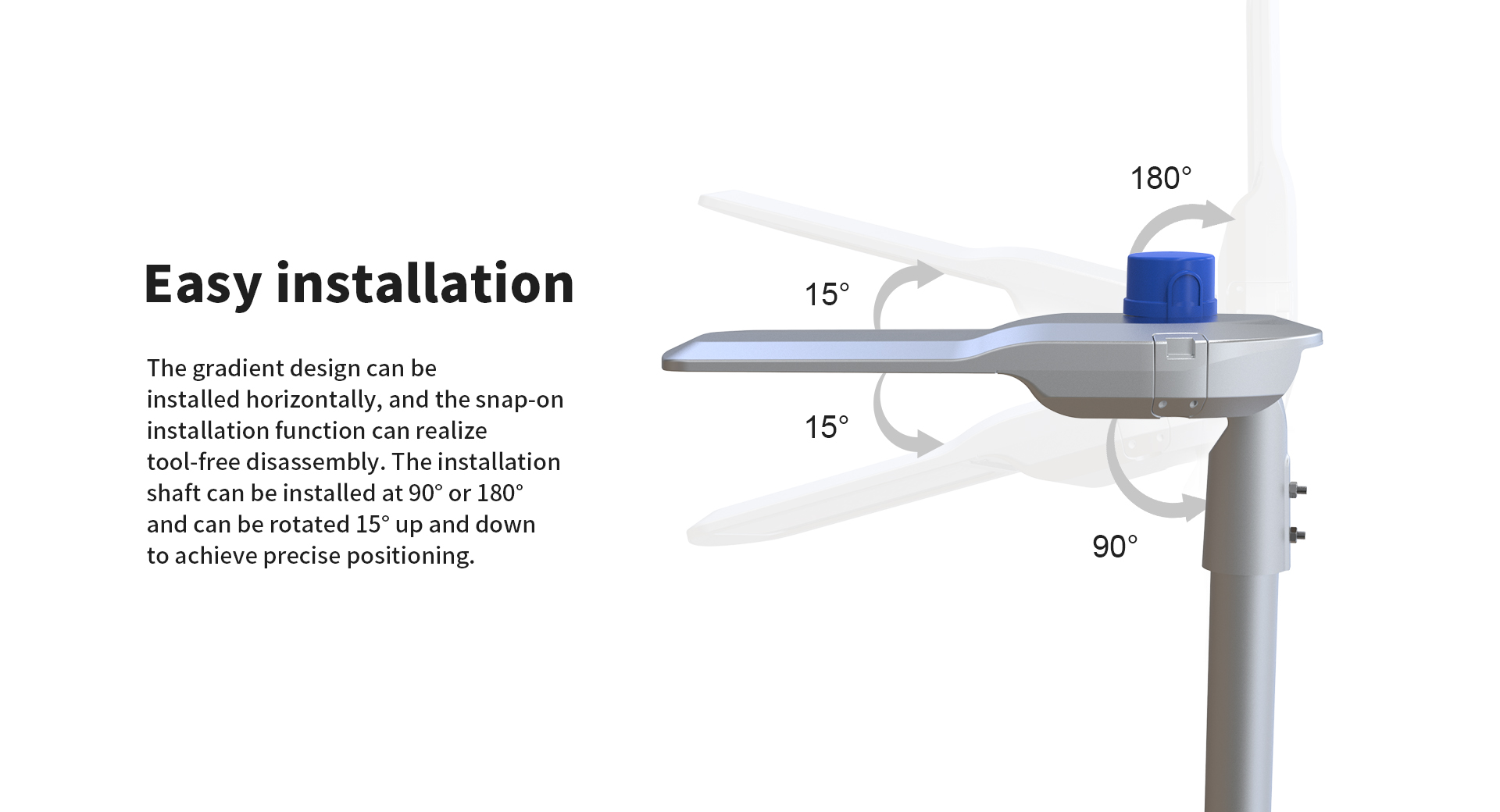

    Gradienter design: easy for horizontal installation
    Snap-on type installation, tool-free disassembly
    Tempered glass panel, no glue fixed
